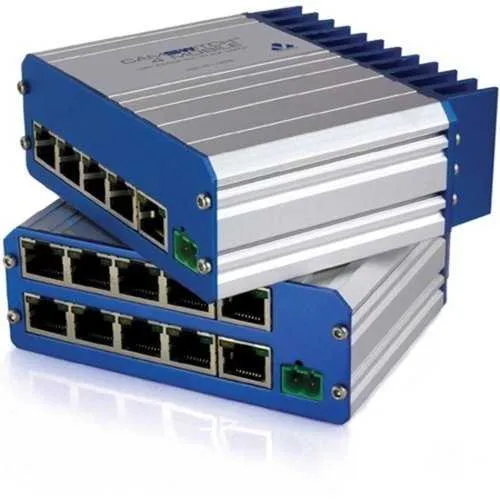

Name: Veracity VCS-4P1-MOB CAMSWITCH 8-Port, Mobile Low Voltage PoE Switch for 12/24V app
SKU: 232983

Product Details ＋

Product Overview

CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.

CAMSWITCH 8 Mobile features 8 802.3at POE ports, 2 non-POE ports, and a versatile DC power input.

Main Features

5/10 port unmanaged 10/100 switch
Auto-configuring for speed (10BASE-T or 100BASE-TX) and duplex
Use with Cat 5, Cat 5e or Cat 6 patch or crossover cables
VCS-8P2-Mob supports VLAN trunking
Unit power 3W
DC input: 8-40V DC, 2.5-13A
Battery circuit fuse required
POE outputs: IEEE802.3af / IEEE802.3at compatible
Total device power budget up to 80 watts (see manual)
Non-isolated POE, use with IEEE compliant devices only
W: 110m / 131mm with side clips
D: 100mm
H: 40mm
Weight 290g (VCS-4P1-Mob) / 350g (VCS-8P2-Mob)

Main Features

Features 10 networking ports to easily establish a local network or expand your existing one
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

General Information

Name: Veracity VCS-4P1-MOB CAMSWITCH 8-Port, Mobile Low Voltage PoE Switch for 12/24V app, Veracity USA, Inc, Veracity

Category: Veracity, Data Communications & Networking, Hubs, Routers & Switches, Network Switches

UPC Code: 892314002203

Country of Origin: Taiwan. Country of origin is subject to change.
