• 10/100/1000Mbps PCIe Adapter
• 32-bit PCIe interface, saving the finite chassis space
• Wake-on-LAN, convenient to manage over LAN

What This Product Does

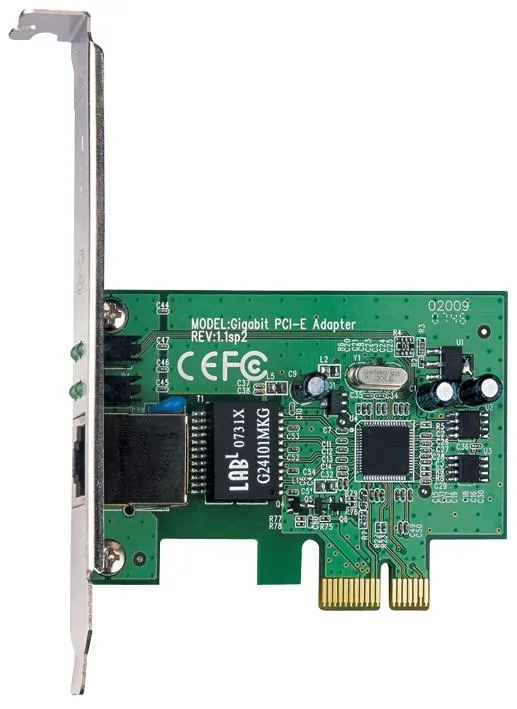

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

Adapter Type: PCI Express Adapter

Interface(s):

32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Transmission Method: Wired

Max Data Transfer Rate: 10/100/1000 Mbps

Dual Band: No

Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

LED: 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control: IEEE 802.3x Flow Control (Full-Duplex)

Environment:

Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents:

Gigabit PCI Express Network Adapter TG-3468
Low Profile Bracket
Resource CD
Quick Installation Guide
