ULXD Series Specification Sheet

The Shure ULXD4 is a half-rack, networkable digital wireless receiver compatible with ULX-D® Digital Wireless Systems. With an expansive set of professional features, including 24-bit/48 kHz digital audio quality, efficient and intelligent RF performance, and AES 256-bit encryption, ULX Digital offers umcompromising wireless tailored for professional sound reinforcement.

ULXD4 Features:

Frequency Band: 534-598 MHz

Predictive switching diversity

High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters

Intelligent scanning automatically finds and deploys the cleanest frequencies to transmitters over IR sync

Interference detection and alerts provided on both the receiver and Wireless Workbench® 6

Front panel gain adjustment buttons provide up to 60 dB additional gain

AES 256-bit encryption-enabled for applications where secure transmission is needed

Ethernet networking provides streamlined setup across multiple receivers, Wireless Workbench® 6 integration, and AMX/Crestron control

Support for frequency coordination with the Axient® Spectrum Manager

Rugged metal chassis

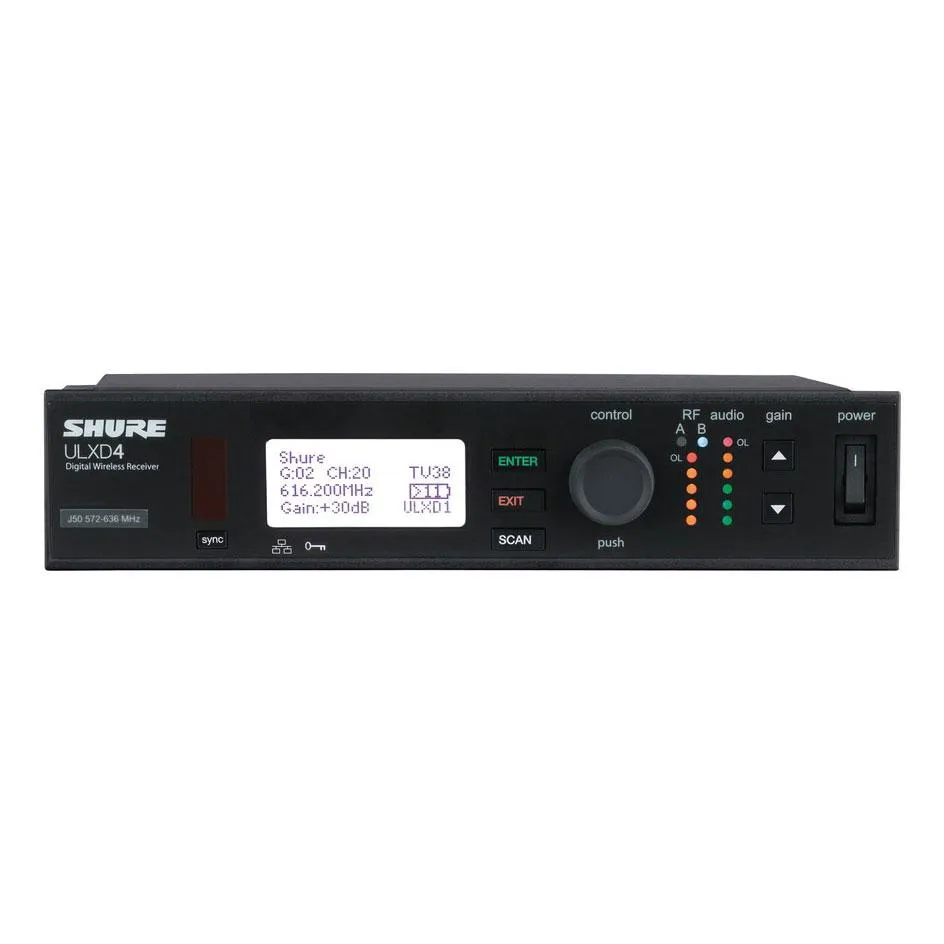

Intuitive front panel LCD menu and controls with lockout feature

Upgraded LCD with adjustable contrast and brightness

Audio and RF LED meters with peak indicator

Remoteable 1/2 wave antennas

Furnished rack hardware
