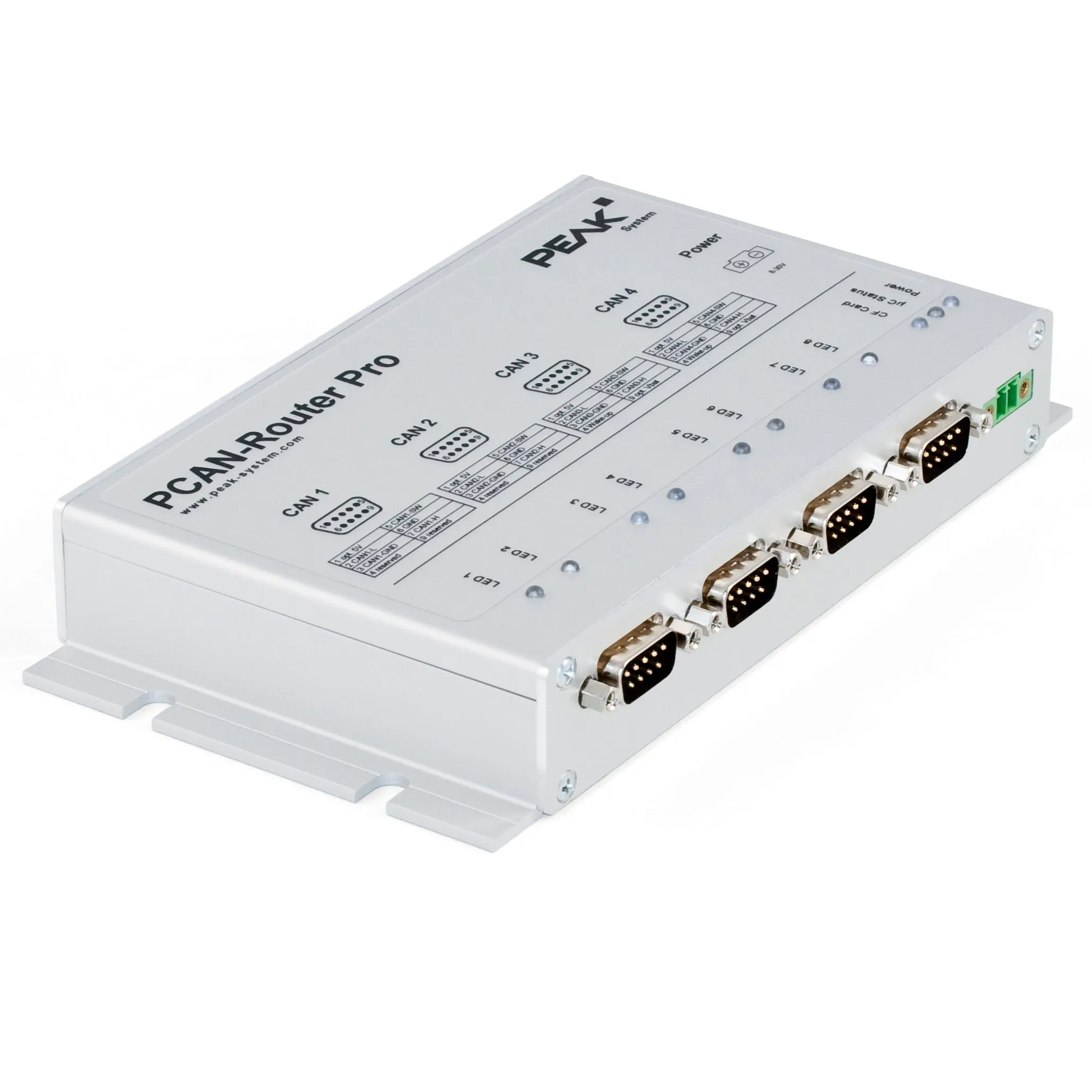

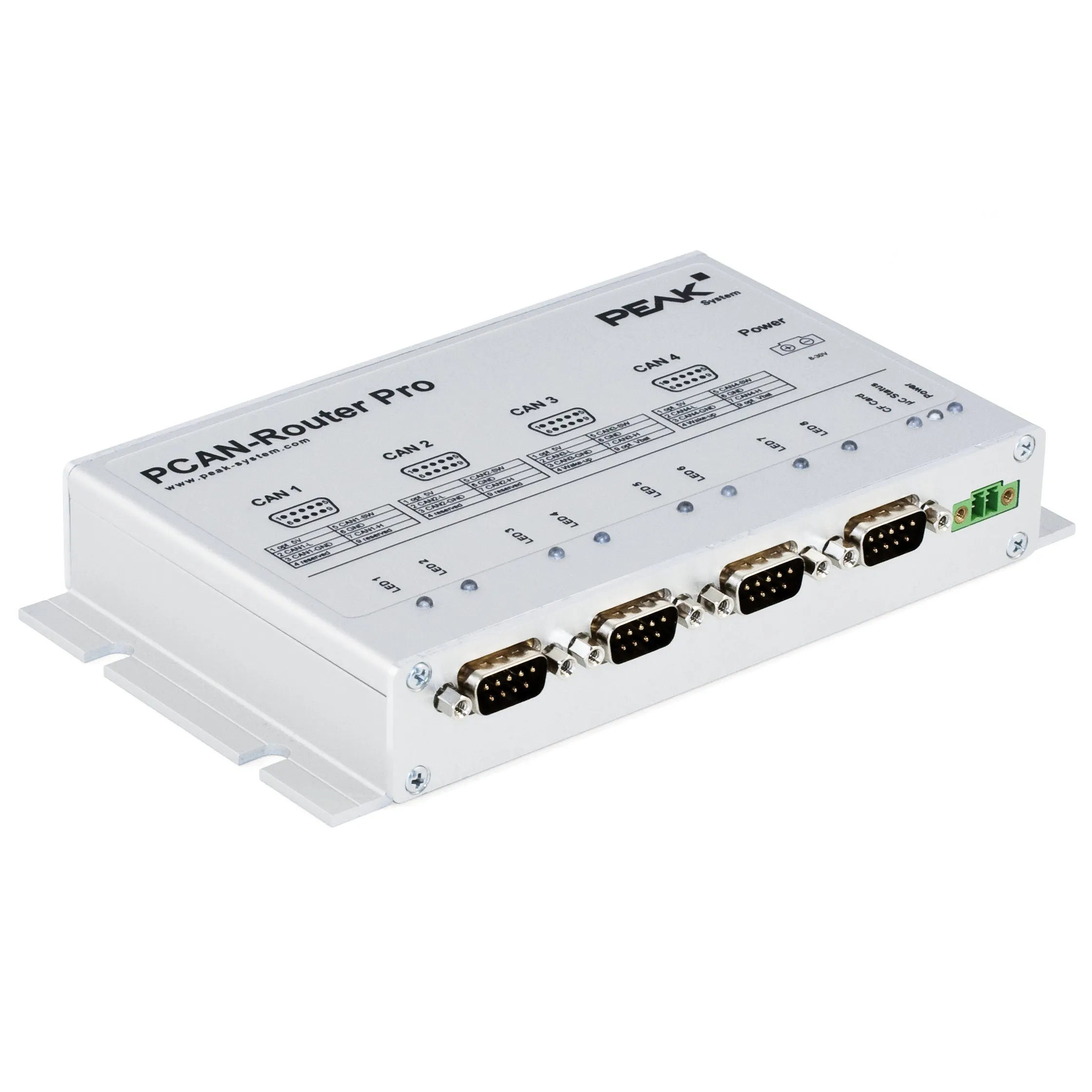

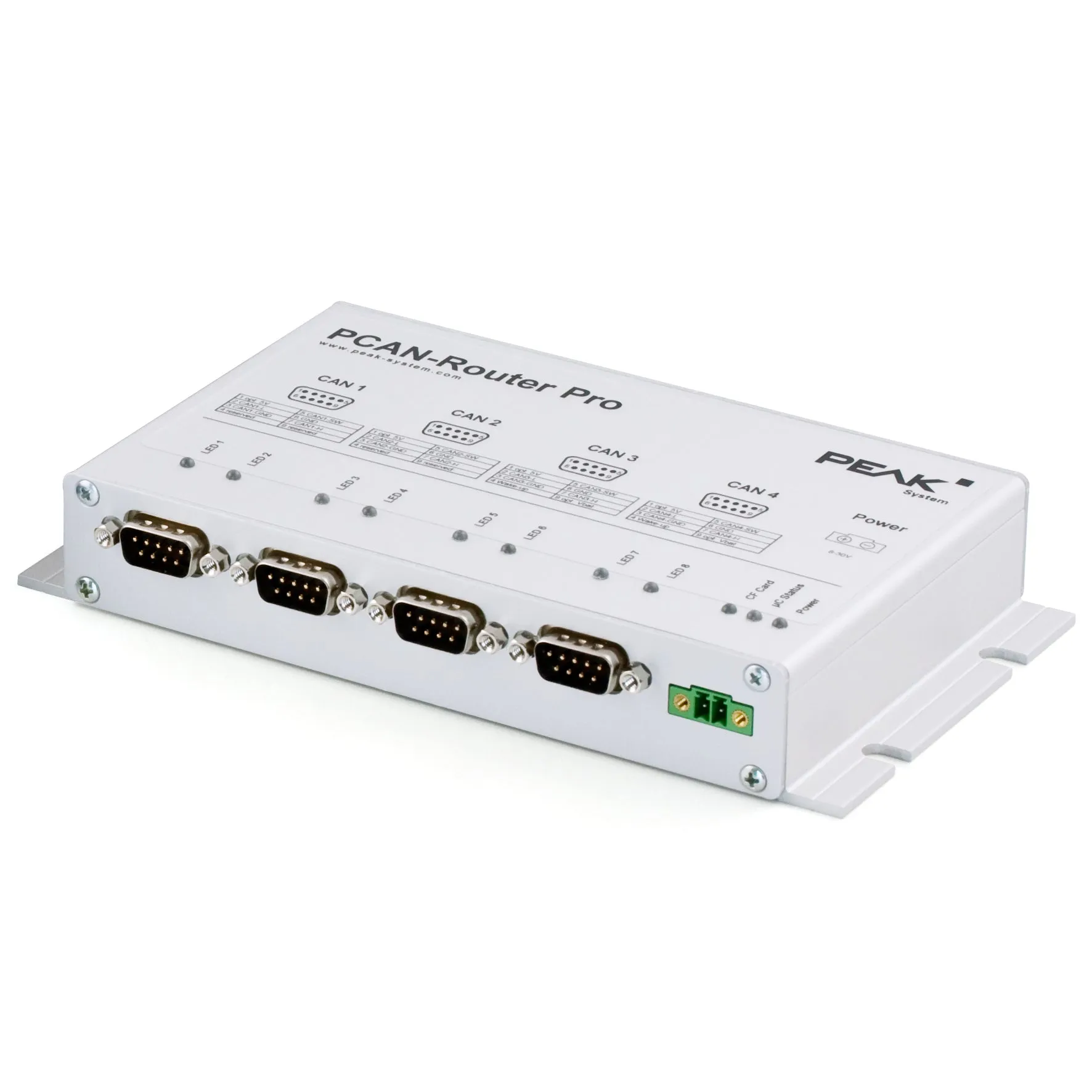

CAN messages from up to 4 CAN channels can be forwarded, manipulated and stored using the PCAN-Router Pro. The router has four physical CAN channels and one virtual CAN channel that is used for storing CAN data to the local CompactFlash disk.

The PCAN-Router Pro is configured using a Windows program to select function blocks that manipulate and route the CAN message from one channel to another. Users can also create and implement their own custom firmware using the included ARM microcontroller.

NOTE: To configure or transfer firmware via CAN, a Peak CAN interface is required.

Package includes:

• 1 PCAN-Router Pro unit
• Power supply
• Mating connector for power supply
• Configuration software PPCAN-Editor 2 for Windows
• Conversion software PEAK-Converter for Windows 10, 8.1, 7 (32/64-bit)
• Industrial CompactFlash card (min. 1 GB)
• Windows development software (Yagarto GNU ARM toolchain, flash program)
• Library with programming examples
• Manual in PDF format
