Laird ETRA4503

450-470MHz Phantom Elite Antenna with NMO

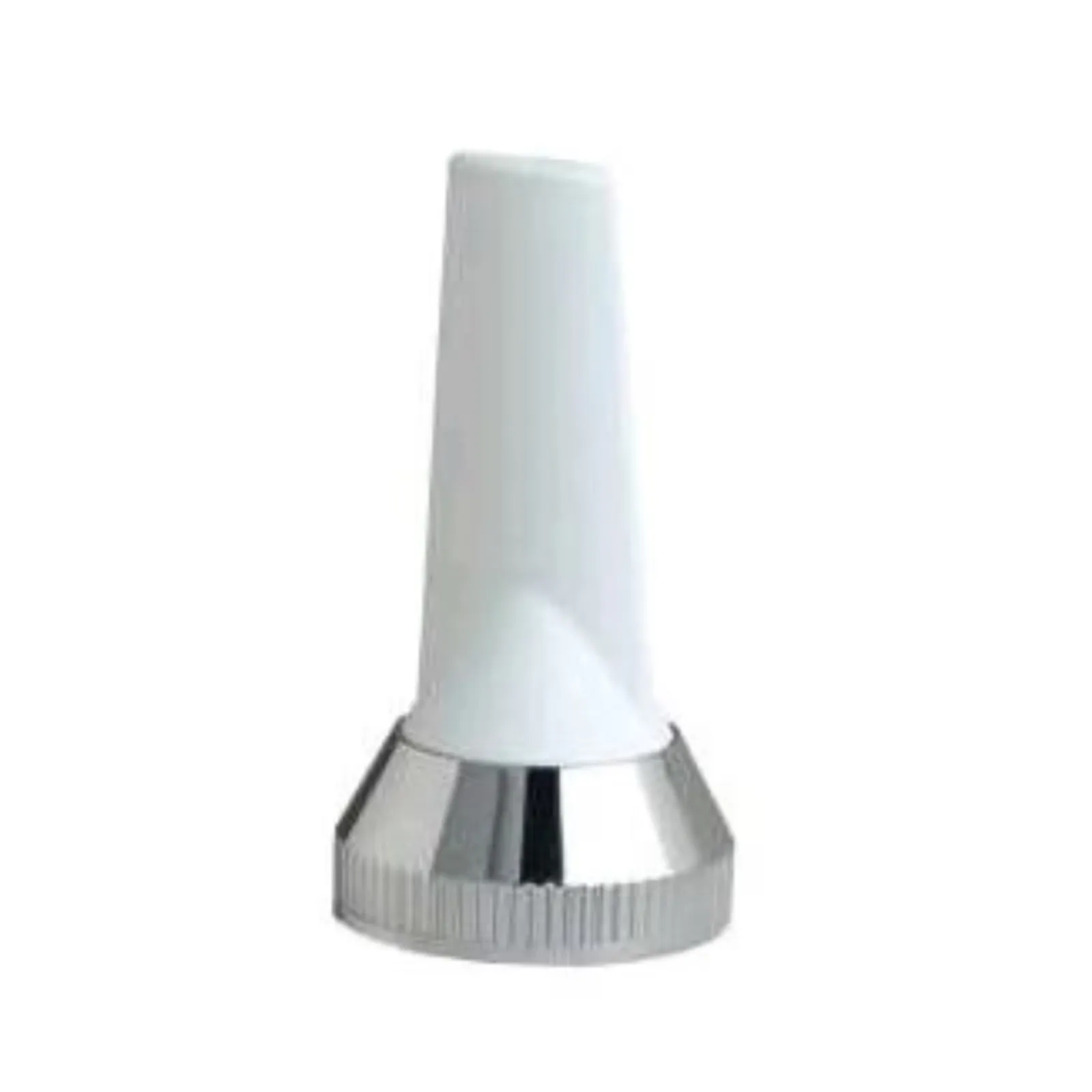

The Laird ETRA4503 is a 3.4 inch high white low profile Phantom Elite antenna with NMO - Mobile Mount base. This antenna requires a metal ground plane, is omnidirectional, offers 5.15 dBi gain and accepts up to 150 watts max power input and operates in 450-470 MHz frequency range.

Laird Technology’s family of Phantom Elite antennas are made of injection molded ABS material, and feature silver soldered joints for best performance.

FEATURES:

• Frequency Range: 450-470 MHz
• Gain: 5.15 dBi
• Polarization: Dual – Horizontal & Vertical
• NMO - Mobile Mount
• FIVE YEAR FACTORY WARRANTY
• Antenna Style Phantom Elite
• Dual Polarity
• SISO
• Omnidirectional
• Impedance 50 Ohm
• VSWR: 2.0:1
• Height/Length 3.4 inches (86.36mm)
• Operating Temperature -40 - 80 C
• NMO Mobile Mount
• NMO Connector
• Ground Plane Required

WARRANTY

*1-year manufacturer's warranty
