Product Details
＋

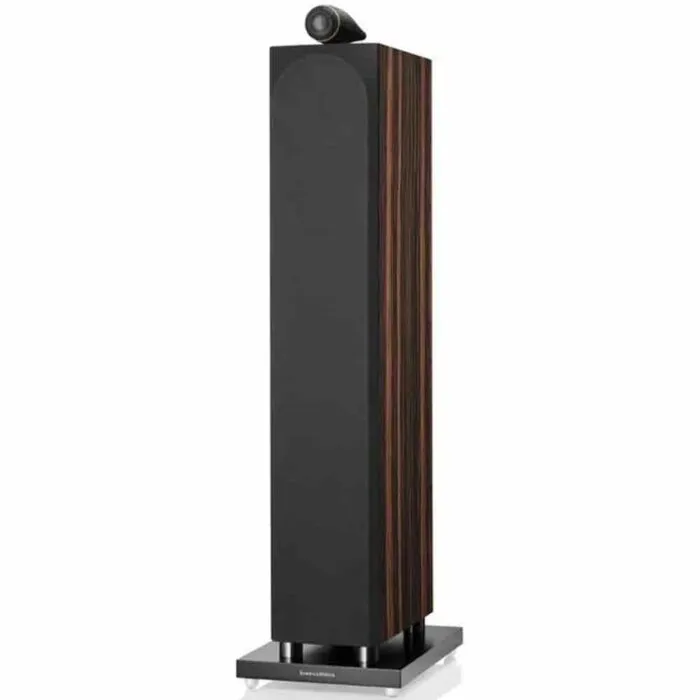

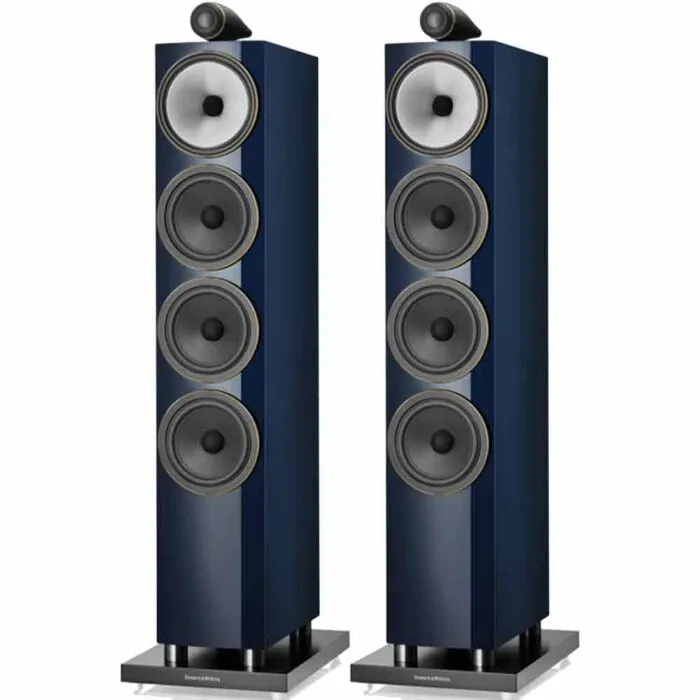

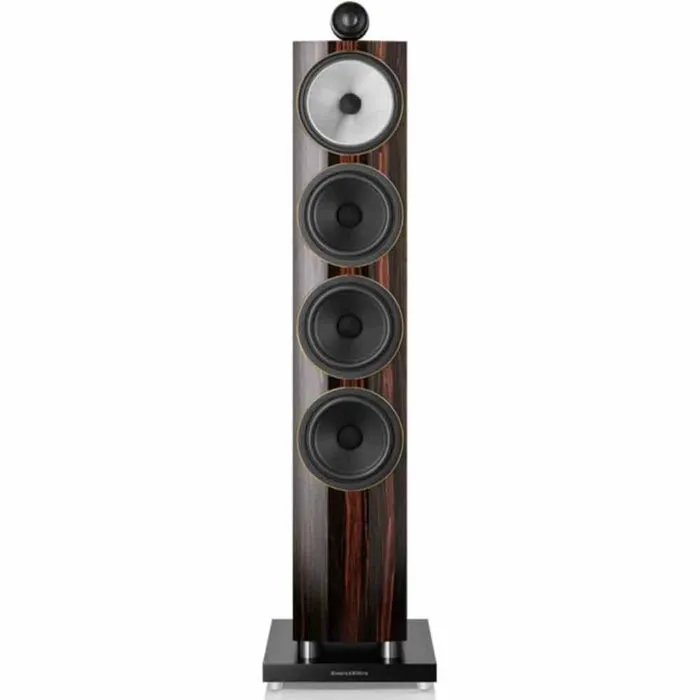

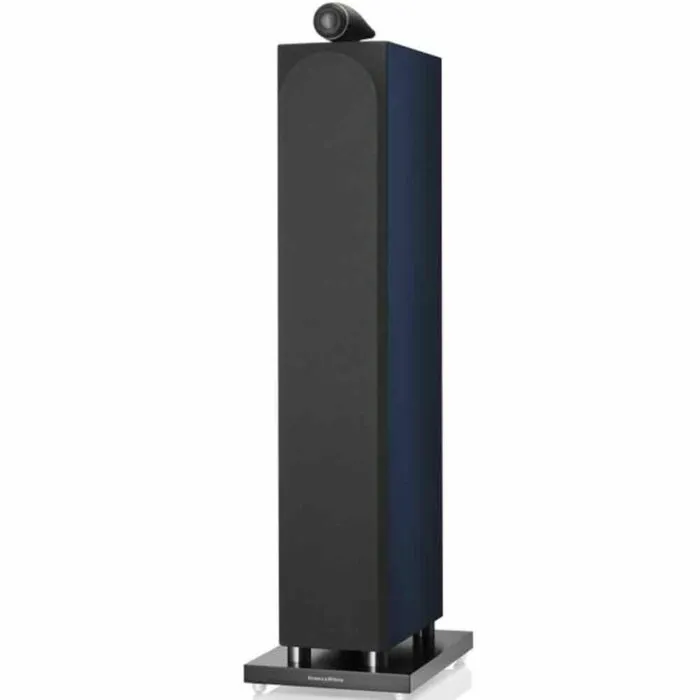

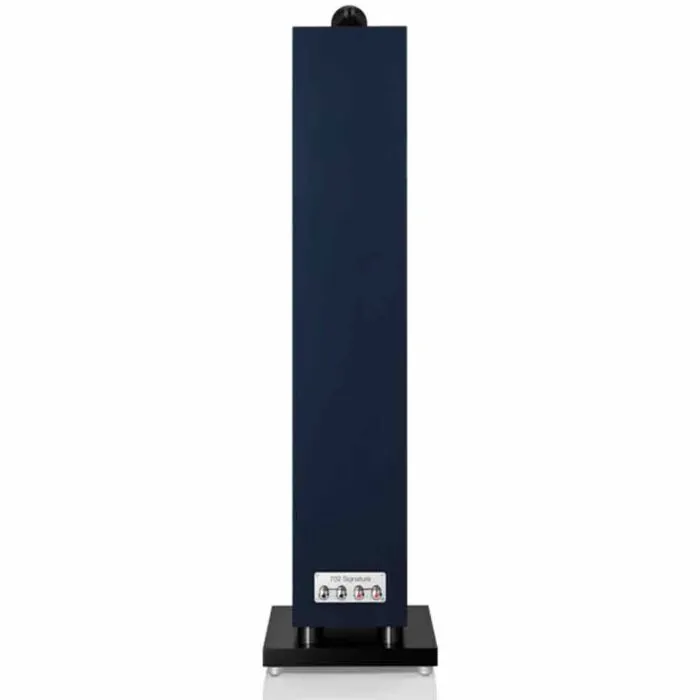

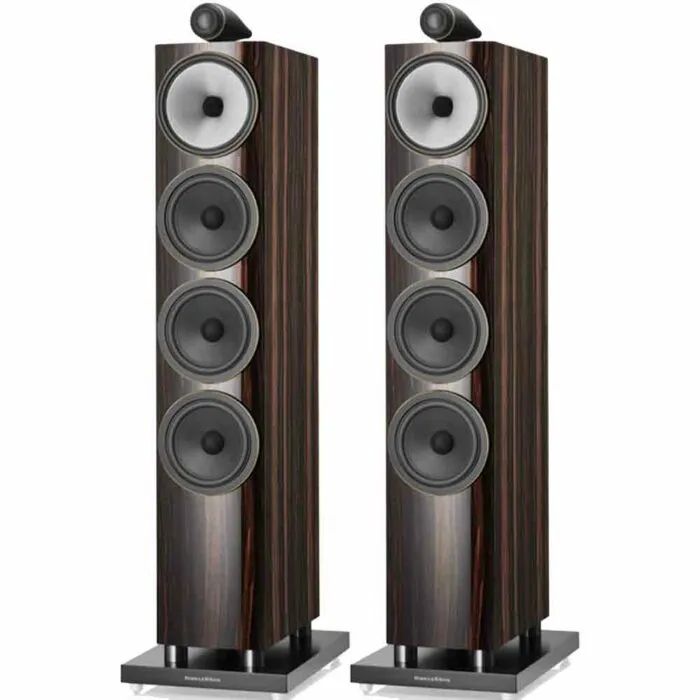

702 S3 Signature
The 702 S3 Signature takes our state-of-the-art flagship 700 Series tower loudspeaker and evolves it to deliver unparalleled levels of performance.
Crafted. Honed. Perfected.
Engineered for pristine studio-quality sound at home, the 702 S3 Signature utilizes upgraded midrange and low-frequency motor systems, improved capacitors, revised speaker terminals, plus a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.
- Technical Features
- Decoupled Carbon Dome Tweeter
- Solid Body Tweeter-on-Top
- Continum cone FST midrange
- Decoupled midrange
- Aerofoil Profile bass cones
- Flowport
- Description: 3-way vented-box system
- Drive Units
- 1 xø25mm (1 in) Decoupled Carbon Dome high-frequency
- 1 xø150mm (6 in) Continuum cone FST midrange
- 3x ø165mm (6.5 in) Aerofoil Profile bass
- Frequency Range: -6ddB 28 Hz – 33kHz
- Frequency Response (3 /-3db from reference axis): 46Hz – 28 Hz ±3dB
- Sensitivity (on axis at 2.83Vrms at 1m): 90dB
- Harmonic Distortion
- 2nd and 3rd harmonies (90dB, 1m on axis)
- <1% 86Hz – 28 kHz
- <0.5% 100 Hz – 20 kHz
- Nominal Impedance: 8Ω (minimum 3.1Ω)
- Recommended Amplifier Power: 30W – 300W into 8Ω on unclipped programme
- Max Recommended Cable Impedance: 0.1Ω
- Dimensions
- Height: 1,010 mm (39.8 in) cabinet only, 1,138 mm (44.8 in) including tweeter and plinth
- Width: 192 mm (7.6 in) cabinet only, 290 mm (11.4 in) including plinth
- Depth: 354 mm (13.9 in) cabinet only, 410 mm (16.1 in) including plinth, 391 mm (15.4 in) including grille and terminals
- Net Weight: 39.5 kg (87.1 lbs)
- Finishes
- Cabinet: Datuk Gloss, Midnight Blue Metallic
- Grille: Black
