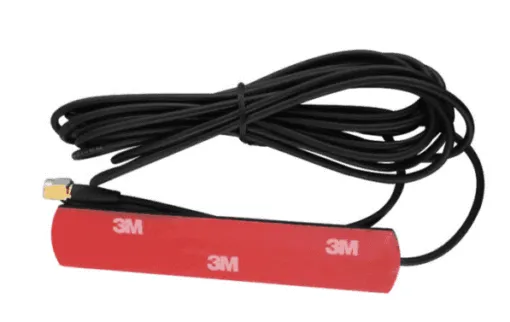

All Blackhawk Antennas come with a 5 year warranty.
Ideal for boosting 3G and 4G LTE signals in a Vehicle.
Ideal for Telstra Next-G and 4GX networks Optus and Vodafone 3G/4G.
FEATURES:
- 3.5 dBi gain across lower bands 698-960 MHz
- 3.5 dBi gain across upper bands 1710-2700 MHz
- Mounting by 3M sticker
- Connector Type SMA Male
- Cable length 3 metres
Notes: In order to boost radio signal the following components are required: Antennas (internal/external), antenna mounts, booster and cables. The antenna and booster must operate in the frequency band of the signal. Signal cable feeds signal from antenna to booster.
ELECTRICAL SPECIFICATIONS
| Frequency Range (MHz) | 698-960/1710-2700 MHz |
| Input Impedance | 50 |
| VSWR | ≤3.0 |
| Gain (dBi) | 3.5 |
| Polarisation Type | Vertical |
| Radiation Direction | Omni Directional |
| Maximum Input Power | 50 W |
MECHANICAL SPECIFICATIONS
| Antenna Length | 115x21x3mm |
| Cable | 3000mm |
| Connect Type | SMA Male |
| Mounting | 3M Sticker |
| Radome Color | Black |
| Cable | RG174 |
| Suction | 0.7 kg |
| Attachment | Welding |
